Sabrina-Hot is the smallest extractor with instant water heating. Using hot water allows a more effective cleaning of very dirty textiles.
Moreover, its high-waterlift vacuum system allows to recover the maximum quantity of dirt from carpet and to get a shortest drying time.
Sabrina-Hot can be loaded in a small car or carried on the top of the stairs without efforts, thanks to its contained size and weight. Sabrina-Hot is supplied as standard with the hand tool NS10PN-M and it can be connected also to the optional accessory for cleaning carpet and hard floor (NS270N). Sabrina-Hot is suggested for those cleaning companies that need an easy-to-carry hot water extractor.
Using the EVE.GUN-M manual gun and a specific chemical it is possible to prespray the carpet in order to soften the dirt before cleaning carpets and quickly sanitize textile surfaces.
Cleaning companies, ferry boats, ships and all places where a portable instant hot water extractor is needed.

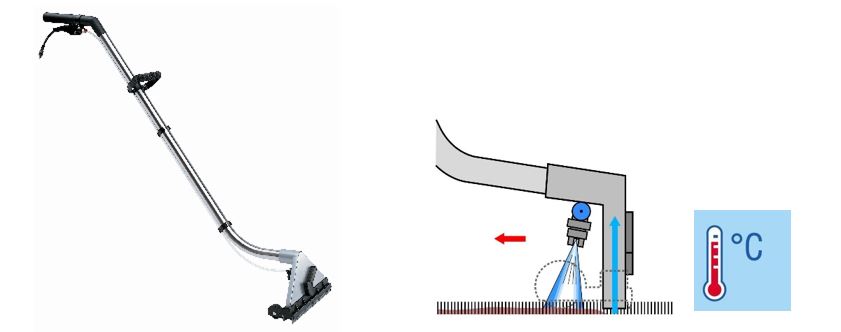

- Instant heating system which allows cleaning with hot water immediately after the machine is switched on.
- High-waterlift technology allows incomparable dirt removal and shortest drying time: carpet can be dry in 1 hour!
- Transparent plastic hand tool that allows to see the dirt sucked from the tissues.
- Spraying valve designed for avoiding any breaking.
- Quick disconnect spray nozzle, which can be removed by hand without using any tool. The nozzle can be easily cleaned.
- With the optional vacuum tool NS270TURBODUST, it is possible to vacuum dust before cleaning, with the same machine.
- Instant hot water unit with light indicating the working status of the heating element.
- Double thermal protection to avoid overheating.
- Thermal protection of the heater against dry working.
- High density polyethylene tanks, very strong and made for lasting a long time.
- Transparent unbreakable cover, which allows to see the dirty water while it is sucked.
- Recovery tank with integrated handle. The tank can be easily detached from the machine body, in order to make the tank emptying and cleaning easier.
- The filter of the vacuum motor is easily removable for cleaning.
- The gaskets are replaceable by hand since they are not glued. Easy to clean and change.
- Strong wheels, in antimark rubber.
- Brass quick-disconnect couplings, reliable and strong.
- Water pump with bypass, which allows an automatic regulation of the optimal water flow according to the tool used. Moreover, the bypass device makes the pump more reliable and avoids problems in the years.
- Pump built on Santoemma specifications, for a longer life.
- Vacuum motor with thermal protection against overload.
- Vacuum motor treated against rust.
- Both motor and pump can work continuously.
- Modular design that makes the maintenance easier. The maintenance of the machine can be done at low costs.
Approximate performance (carpet cleaning with NS270N-M)*:
|
40-60 m²/h |
Approximate performance (carpet cleaning with Professional
SET)*:
|
60-120 m²/h |
Recovery tank capacity:
|
14 litres |
Solution tank capacity:
|
14 litres |
Vacuum motor:
Power:
Maximum waterlift:
Maximum air flow:
|
2 stages - High waterlift
1500 W 3000 mm H2O 50 l/sec. |
Pump with by-pass:
Power:
Maximum pressure:
Maximum water-flow:
|
vibrating 70 W 4 bar 1,5 l/min |
Cleaning width:
|
100 mm |
Number of nozzles:
|
1 |
Instant hot water unit: |
standard - 1800W |
Brush:
|
Optional |
Cable length:
|
10 m |
Hose lenght:
|
2,5 m |
Weight (machine body):
|
22 kg |
Weight (packaged machine):
|
26 Kg |
Dimensions:
|
30 x 42 x 66,5 cm |
Package dimensions:
|
36 x 60 x 80 cm |
Units/pallet:
|
8 pcs/pallet (80x120x173h) |
Standard color:
|
Blue |
Tank construction:
|
High density polyethylene |
Sound pressure level - ISO3744 (1m):
|
75 dB(A) |
Power supply:
|
cable - 220-240V 50-60Hz (other voltages on request) |
WATER TEMPERATURE INCREASE (Delta T) WITH RESPECT TO THE INPUT TEMPERATURE Water temperature increases when using nozzles with smaller sections. |
Tool used
|
Delta T with continuous flow
|
Delta T with typical use (brief intervals without spraying
)
|
NS10PN-M |
~ +31°C |
~ +41 °C |
NS270N-M |
~ +34°C |
~ +45 °C |
It is possible to pre-heat the water, in order to obtain higher temperatures. The thermal protections limit the maximum temperature at 65°-70°C. |
(*) The effective performance depends on the type of cleaning required: restorative deep cleaning - maintenance cleaning. |
Included accessories
The machine is supplied as standard with the following accessories:
Recommended accessories and devices
In order to optimize the results that can be obtained by this model, we suggest the adding the following accessories and special devices:
Other compatible accessories and devices
Below are listed all the accessories and devices that can be used with this machine
