HOTCART15+SMARTVACUUM Kit (for Sabrina-HOT/SW15-HOT)

Optional for
Sabrina-HOT and SW15-HOT

The HOTCART15+SMARTVACUUM is an optional kit for the Sabrina-HOT and SW15-HOT models that allows you to store all accessories on board the machine and easily transport the machine from one place to another, thanks to its ergonomic handle.

In addition, the HOTCART15+SMARTVACUUM kit includes the SMARTVACUUM-15 dust tool. It can therefore be used with the Sabrina-HOT and SW15-HOT models as an alternative to the SMARTVACUUM-15 accessory.

Supplied as an assembly kit.

The HOTCART15+SMARTVACUUM Kit includes:

Cart complete with handle
Metal bracket for mounting the SMARTVACUUM-15 on top of the cart.
SMARTVACUUM-15
The 491536 support for injection-extraction wands or the 35761C dust tool.

A special metal bracket, supplied as standard with the cart, keeps the SMARTVACUUM-15 accessory slightly raisedabove the machine’s upper tank, allowing for easy removal of the upper tank for filling and draining water.

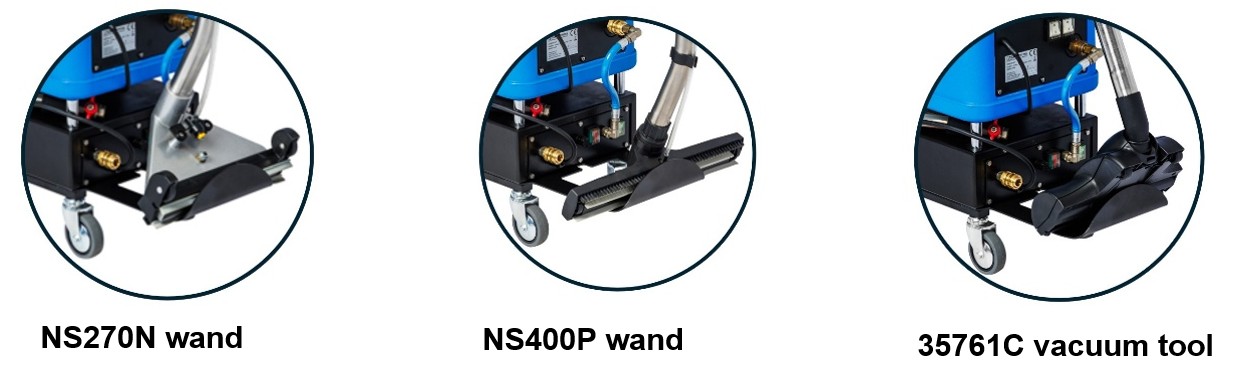

The HOTCART15+SMARTVACUUM kit also includes the 491536 wand support. The 491536 support can be used to store one of the injection-extraction wands for carpet or hard floors, or the 35761 dust vacuum tool on the machine.

Dust vacuuming with HOTCART15+SMATVACUUM

The HOTCART15+SMARTVACUUM is supplied as standard withSMARTVACUUM-15, which is mounted on top of the cart.

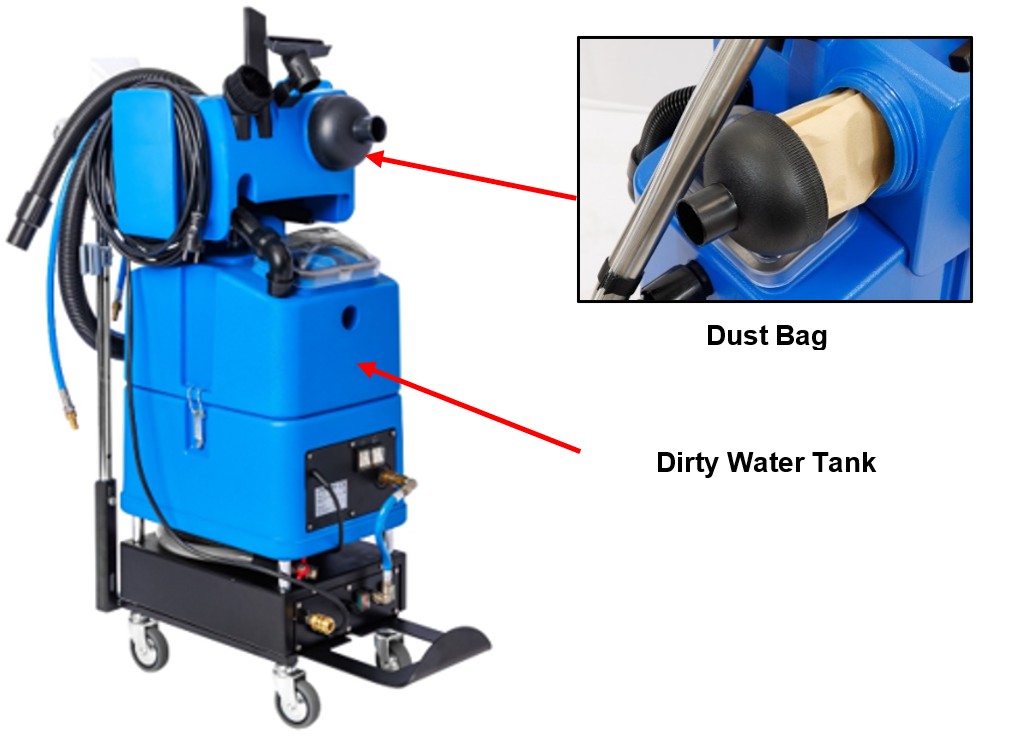

The dust is collected in the bag inside SMARTVACCUM and it always remains separate from the dirty water, which is contained in the machine's recovery tank.

Dust vacuuming is done very effectively by the high-waterlift vacuum system of Santoemma machines.

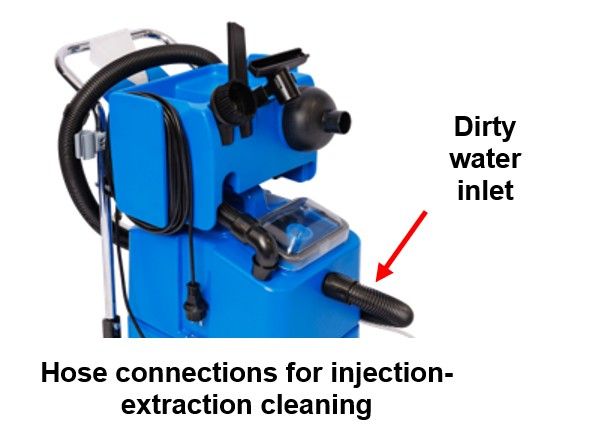

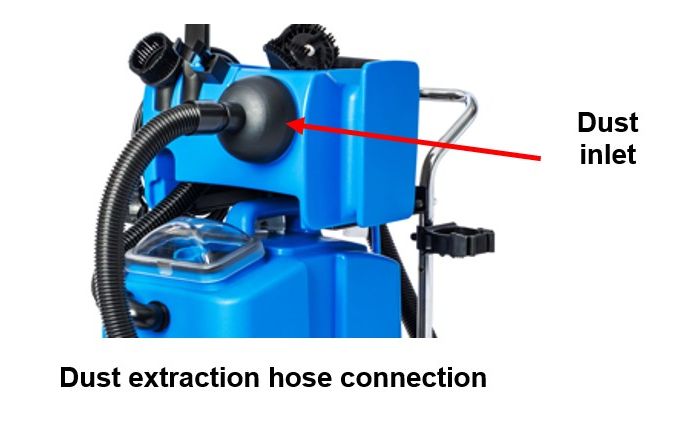

Switching between injection-extraction mode of operation and dust vacuuming mode is very simple and is done by appropriately connecting the vacuum hoses.

Since dust and liquid are always separated, before vacuuming dust, it is not necessary to empty the dirty water tank and dry it, to insert the bag into the machine.

After vacuuming dust, to clean by the injection-extraction method, it is not necessary to remove the dust bag.

Accessories for vacuuming dust

SMARTVACUUM-15 can be connected to different vacuum tools through the vacuum hose, which is supplied as standard with the machine, with no need of additional hoses.

SMARTVACUUM-15 comes standard with 3 dust accessories: 353 crevice tool, TST.023 furniture nozzle, 354 dusting brush. Other accessories can be combined as options.

The TACC-ROTO-NE tool is an optional manual accessory equipped with a rotating brush for more effective dust removal. It is ideal for cleaning upholstered fabrics, sofas, armchairs, and mattresses. The rotation of the brush is activated by the vacuum power of the motor.

35761C is an optional accessory with rotating brush with 270mm cleaning width. Ideal for carpet, rugs and floors.

Every tool in its place!

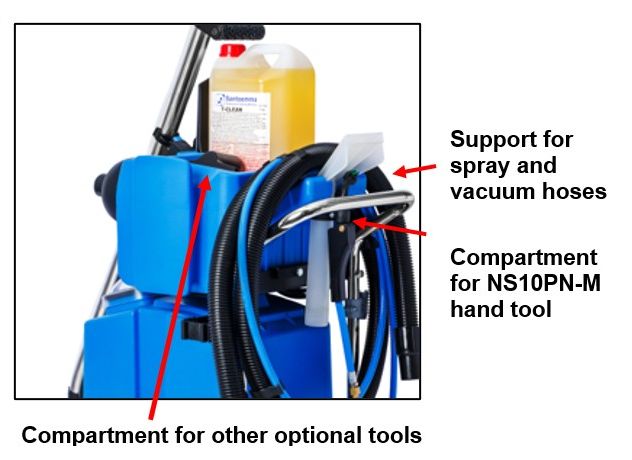

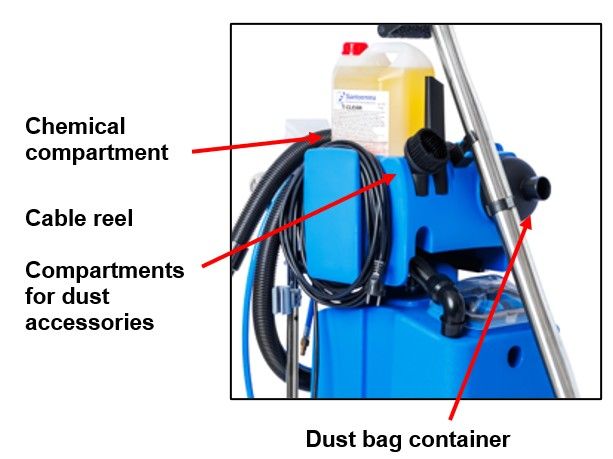

In addition, SMARTVACUUM-15 allows the following to be conveniently stored on the machine: the accessories for vacuuming dust, the power cord, a canister of detergent, the hoses and the hand tool for injection-extraction cleaning.

The side clips allow you to hang the 35761Cdust vacuum tool and the EVE.GUN-M gun for pre-spraying and nebulization@100micron on the HOTCART15+SMARTVACUUM

Waterlift of the machine with HOT CART15+SMARTVACUUM:	3000 mm H₂O
Compatible with H10-RAGNO-M hoses? (Standard hoses supplied with Sabrina-HOT and SW15-HOT)	YES
Bag capacity (paper / microfiber):	2 liters
Material:	Metal + High-density polyethylene
Weight :	9 kg
Weight ( packaged tool ):	10 Kg
Dimensions:	cm 40 x 74 x 82 h
Package dimensions:	cm 40 x 76 x 28 h
Units/pallet:	21 pcs/ pallet (cm 80 x 120 x 210 h)

The Kit includes: the complete cart with handle, a metal bracket to house SMARTVACUUM-15 on top of the cart, SMARTVACUUM-15 and the 491533 holder for injection-extraction wands or for the 35761C vacuum tool.
